Antenna details

You may build the antenna as described in the manual.

We used fiber poles to avoid contact with trees or grasses. Inside we put a fat wire 35mm2
The total lenght is 6,9 meters (22 feet).

regel======================================================================-->


The fiber pole are green painted to hide and procted it for UV.

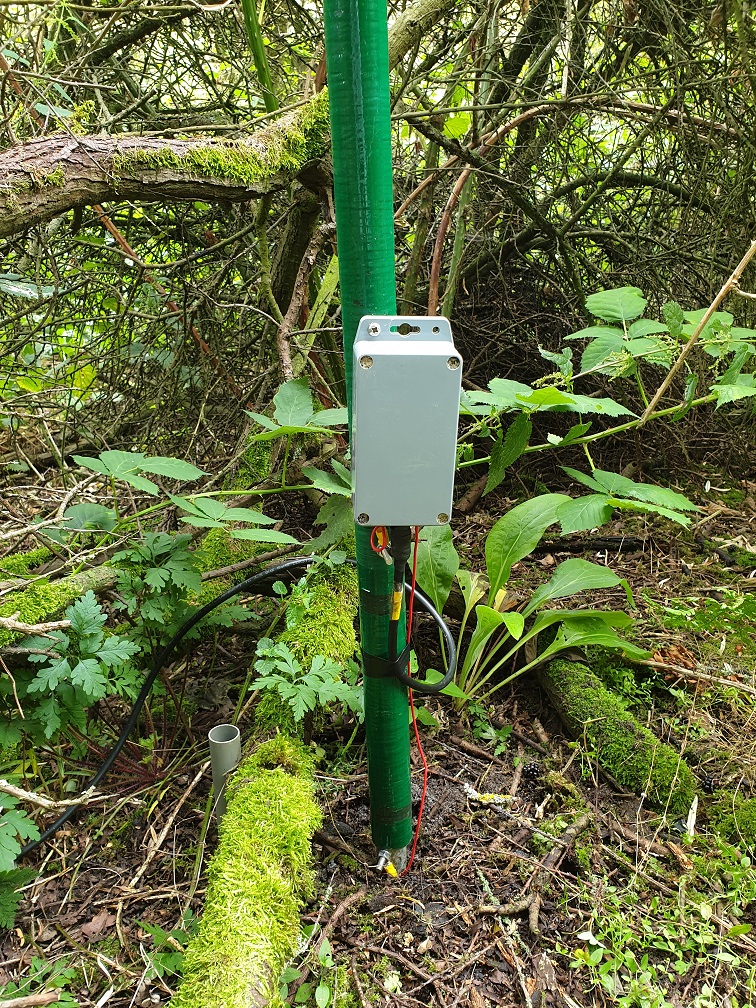

The pre-amp mounted on the antenna.

As ground rod we use a 1,2 meter long steel pipe witch just fit inside the fiber rod.




One complete antenna ready to install.




An Antenna in the field.
