RX pre-amp details

The pre-amp is build around the AD8055AN Voltage Feedback Amplifier. W1FV is the father of this design. His design notes are writen down in a email on the topband reflector.

In Eagle we have made a pcb and its just a copy our the orginal design. The only difference is the connection to the ground rod an antenna where we moved them to the output/bottom side.
We add a option for a led as surgest by K1XX in case of trouble shooting.

Below a couple of pictures. A click on it will give a bigger on

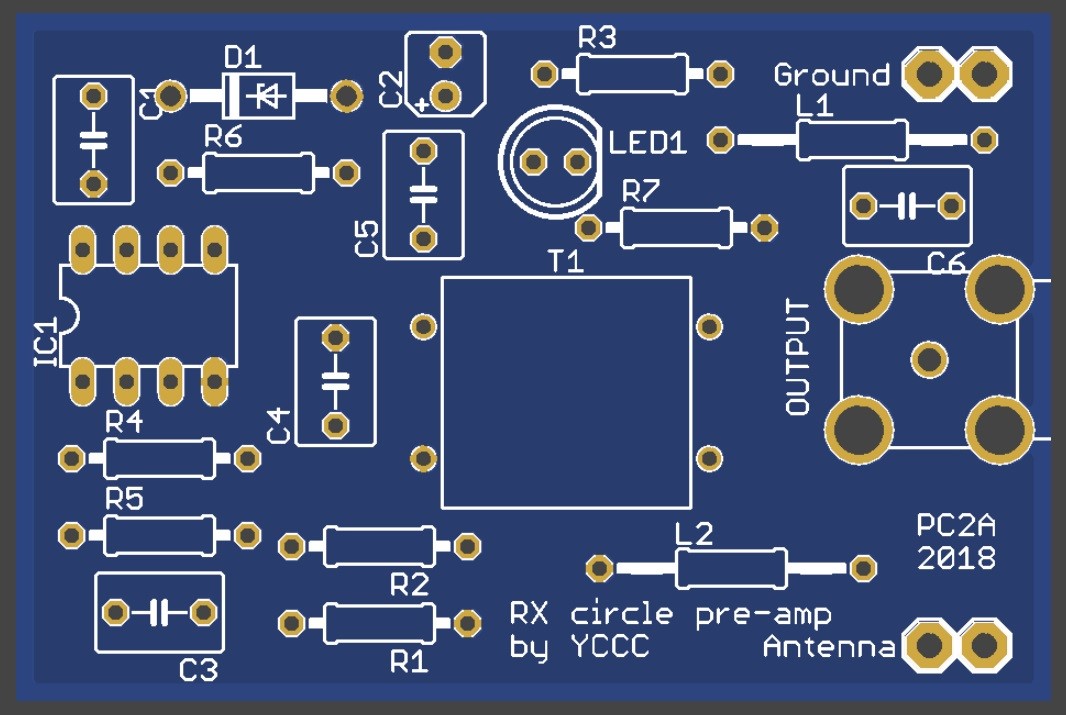

The pcb layout.

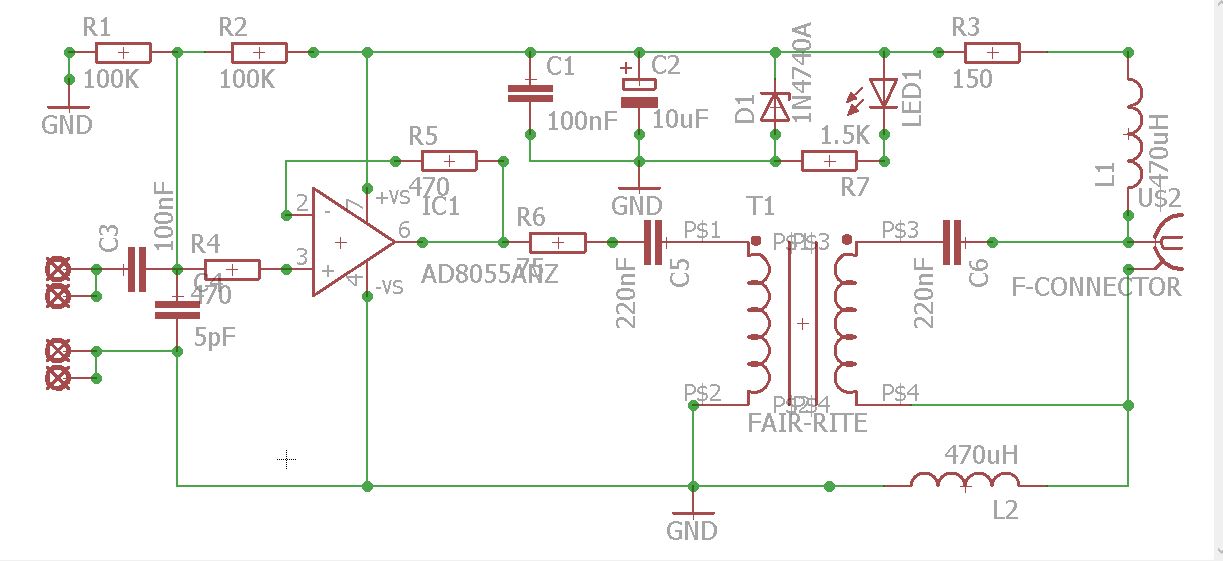

The schematic of the amp.
Download as pdf in black/white.

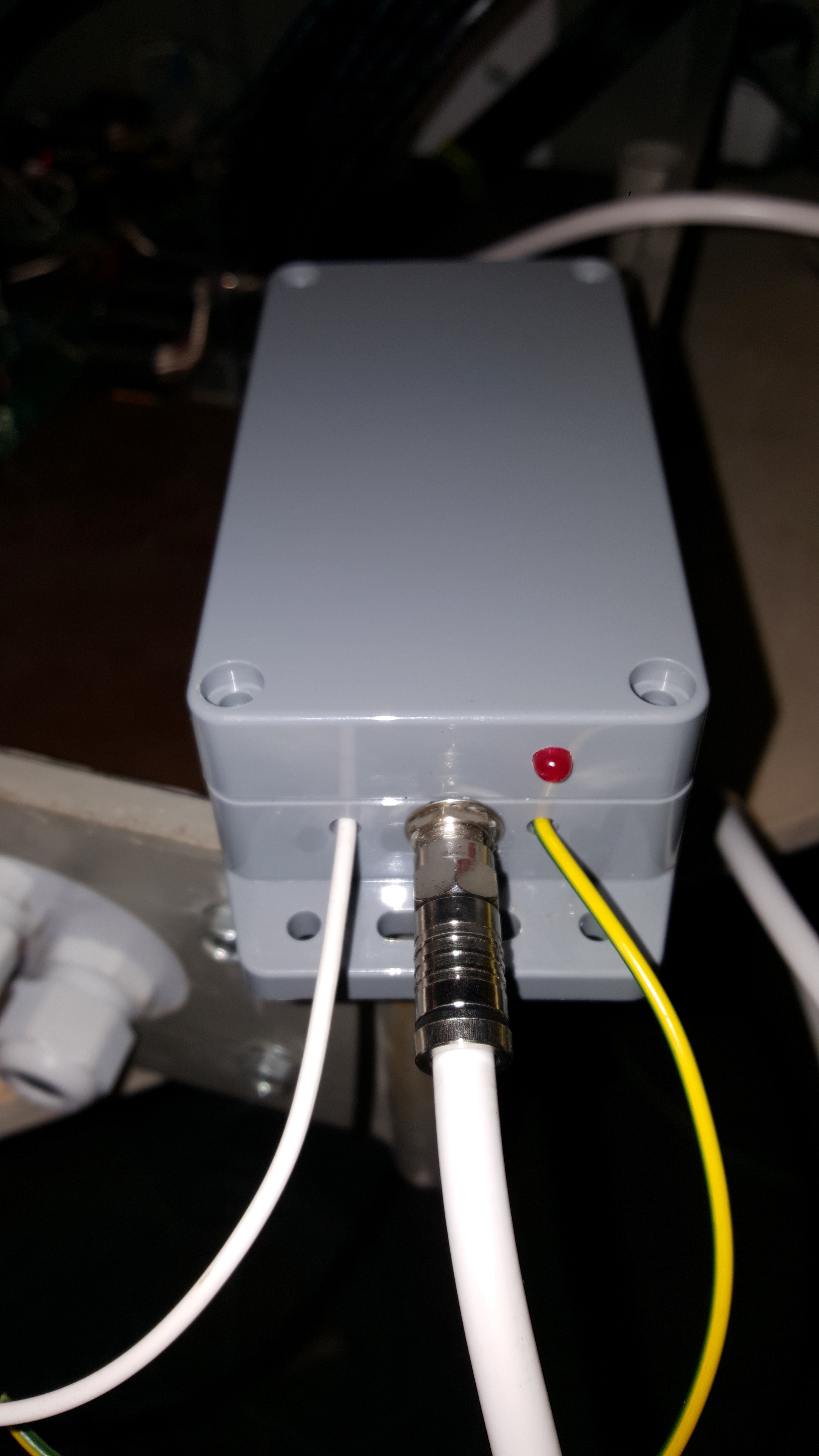

A amp in a closure.

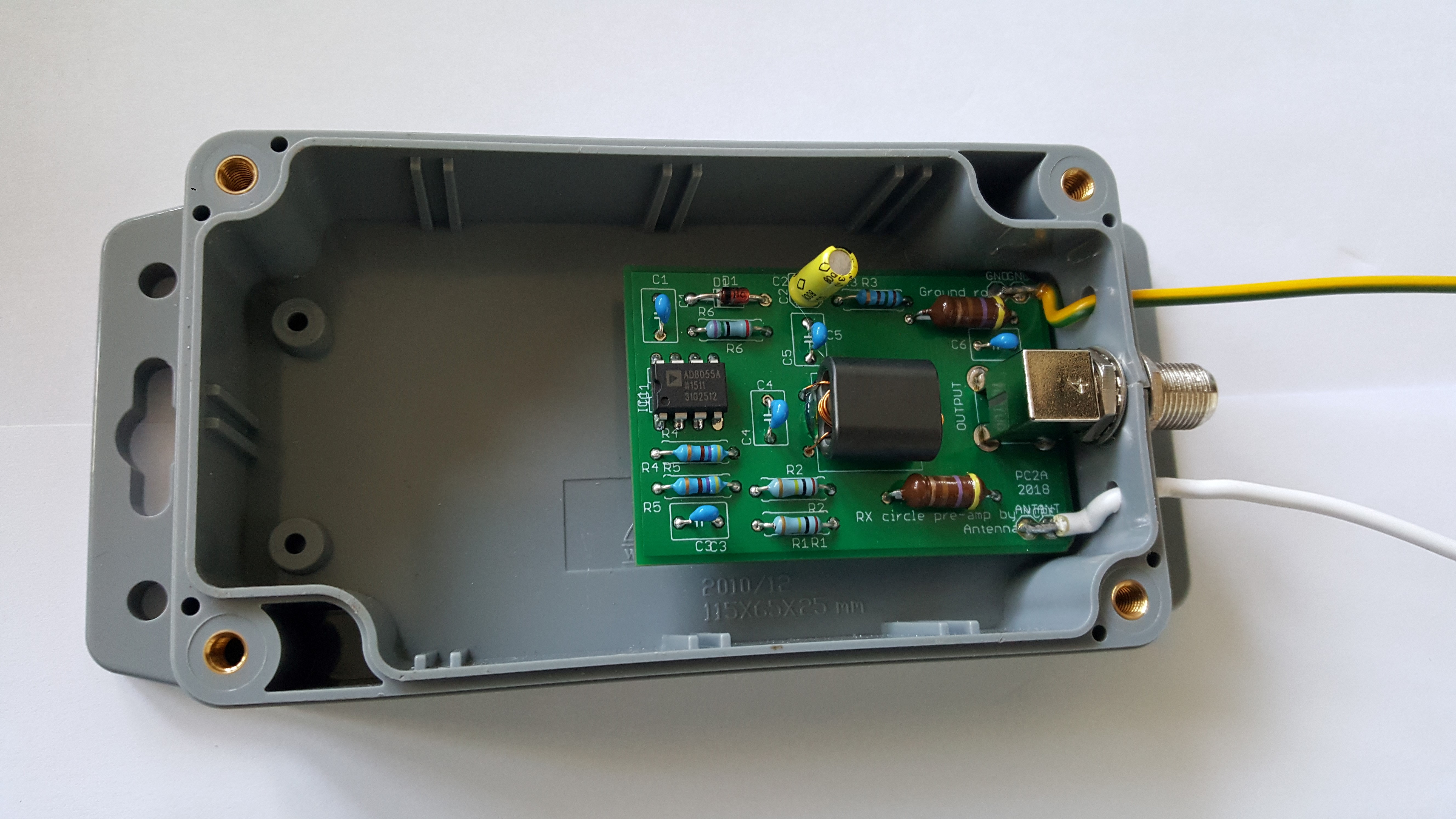

A close-up at the bottom site.




A batch of 9 ready to go rx amps.
