The Equipment
OH0 DX-Pedition 2008

We will running three stations together, Hans PA0VHA make very beautiful bandfilters

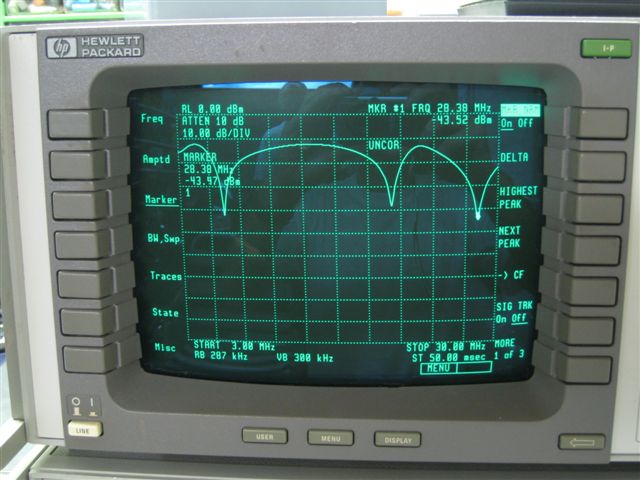

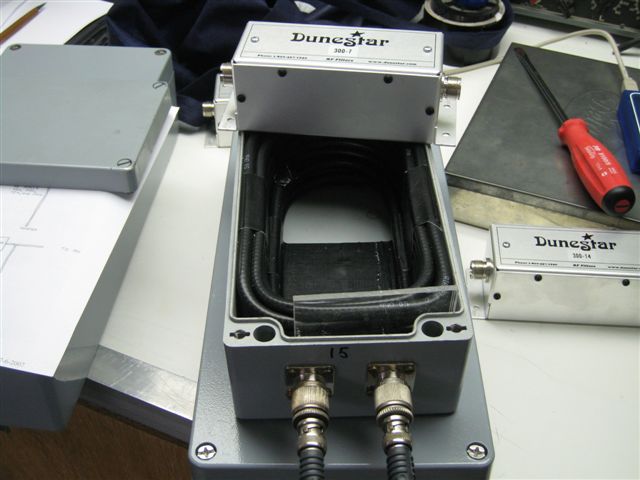

On the left side 15m filter in a box maked with Aircell 7, right a picture from Spectrum analyser

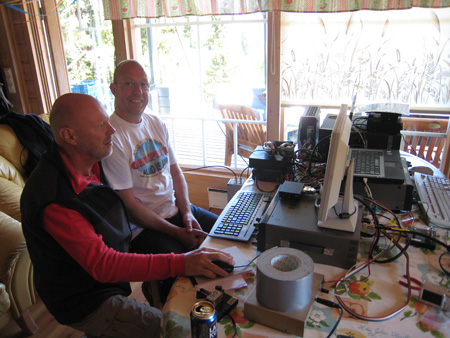

The equipment for this Dx-pedition are:
Transceivers: Kenwood TS-480, TS-850 for HF
FT-857 for 2 m
Elecraft K-2 and Elecraft K-3 for HF
Station |
Equipment |
CW |
TS-850/K-2 + Microham + ACOM 1000 + Band filter + Laptop PC + Writelog |
SSB |
TS-850 + Microham + ACOM 1000 + Band filter + Laptop PC + Writelog |
DIGIMODES |
TS480/K-3 + Microham + ACOM 1000 + Band Filter + Laptop PC + Writelog + MixW |
2 and 6m |
FT-857 + Switching PSU + Laptop PC + Writelog |
BACKUP |
TS-850 +Microham + Switching PSU + Band Filter + Laptop PC |
Power Amplifier 3 x Acom 1000

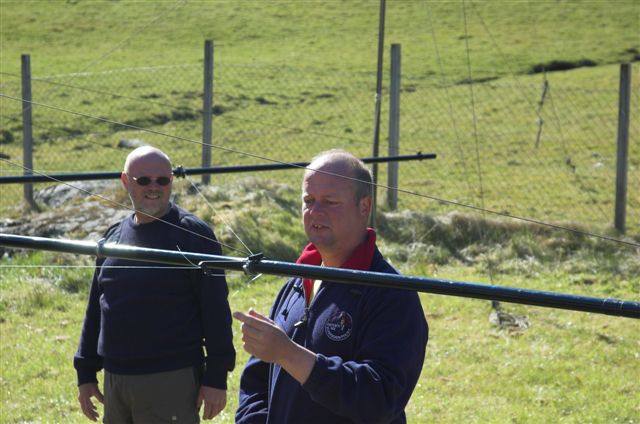

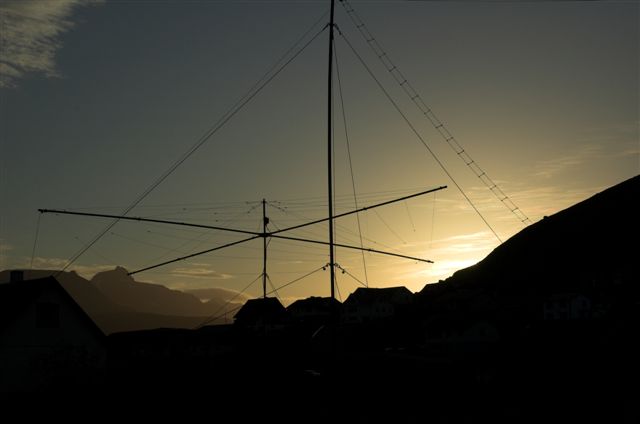

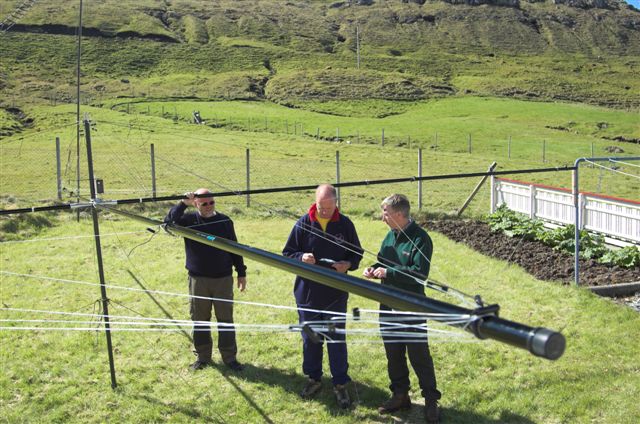

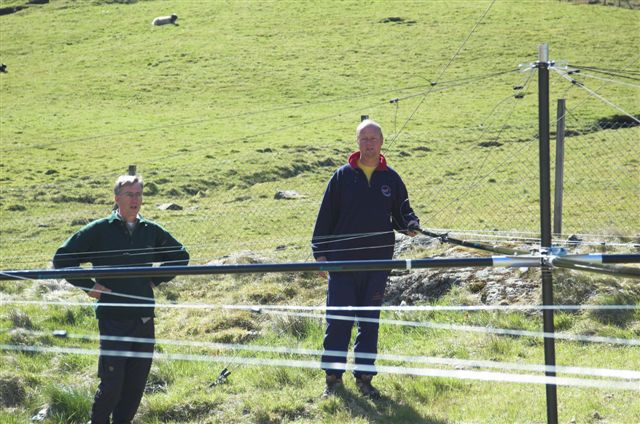

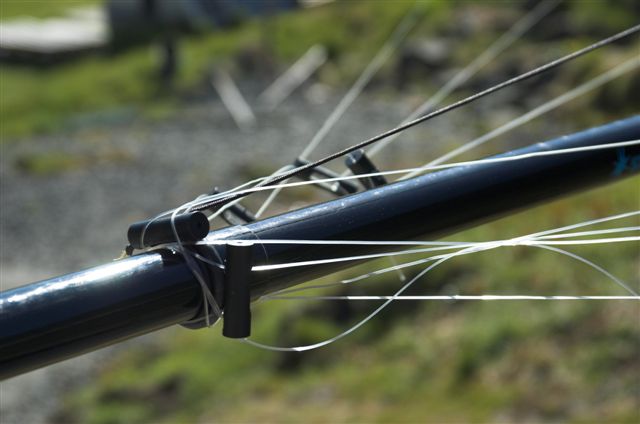

Antenna’s Spiderbeam for 10m, 15m and 20m

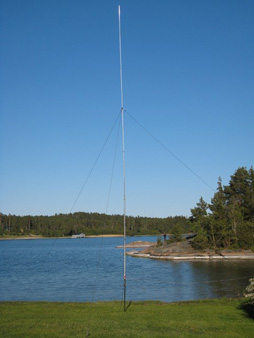

Fritzel GPA-30 for 10m, 15m and 20m
Fritzel GPA-303 for 30m, 17m and 12m
Dipoles for 40m, 80m and 160m
3 elements beam for 6m

Antenne setup:
|
Spiderbeam
|
GPA-303 |
GPA-30 |
3 elem
Yagi |
dipoles |
10 elem yagi |
Vertical |
160m |
|
|
|
|
|
|
|
80m |
|
|
|
|
|
|
|
40m |
|
|
|
|
|
|
|
30m |
|
|
|
|
|
|
|
20m |
|
|
|
|
|
|
|
17m |
|
|
|
|
|
|
|
15m |
|
|
|
|
|
|
|
12m |
|
|
|
|
|
|
|
10m |
|
|
|
|
|
|
|
| 6 m |
|
|
|
|
|
|
|
| 2 m |
|
|
|
|
|
|
|
Interface 3 x Microham Digikeyer
Computers 3 x Laptop with Windows-XP
Software Writelog, MixW and Wintest
|
