For better viewing every picture can be enlarged by clicking on the picture. Each print has a label name. In the table you will find a value for each component.

Print orientation.

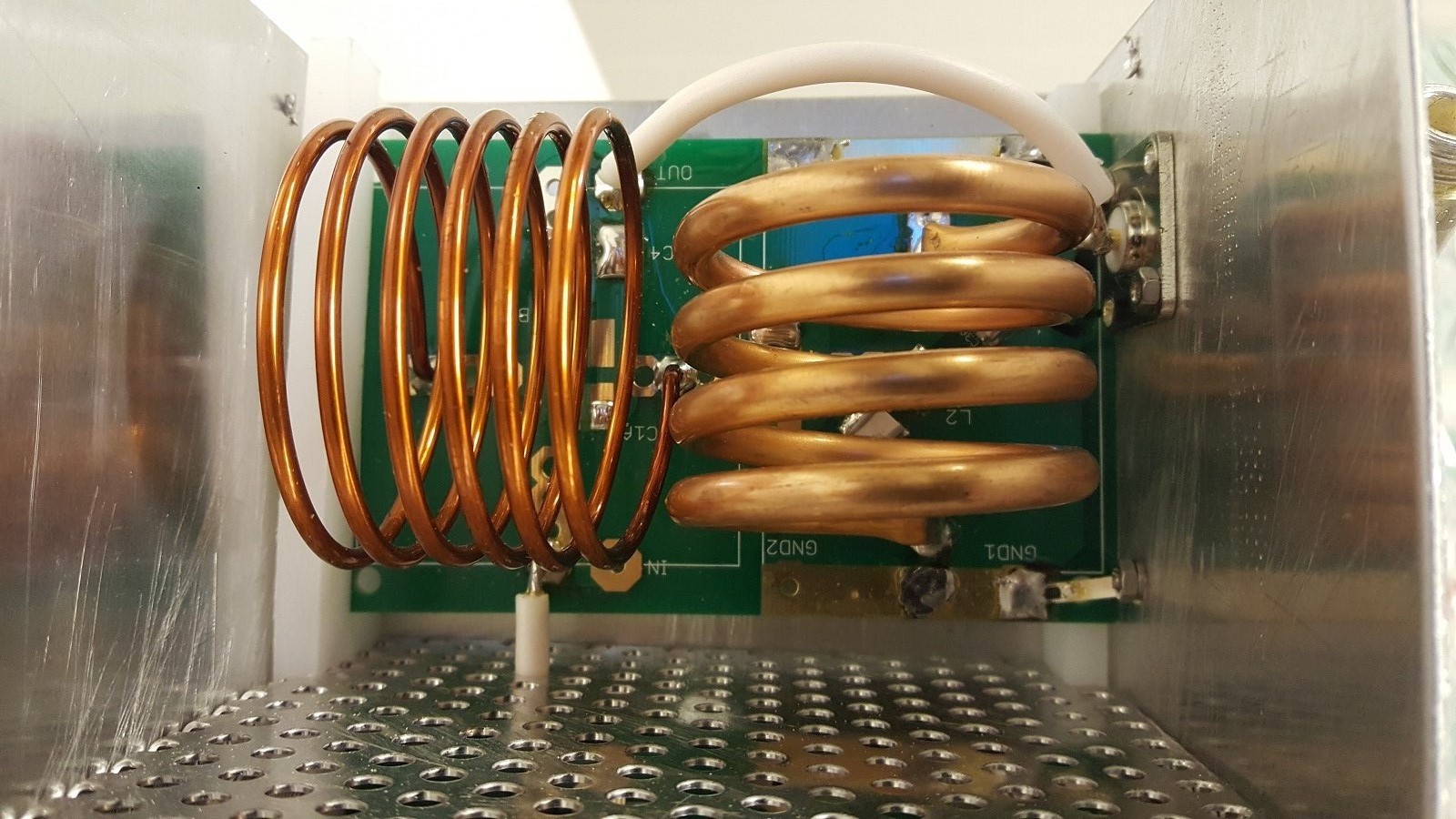

A single filter print.

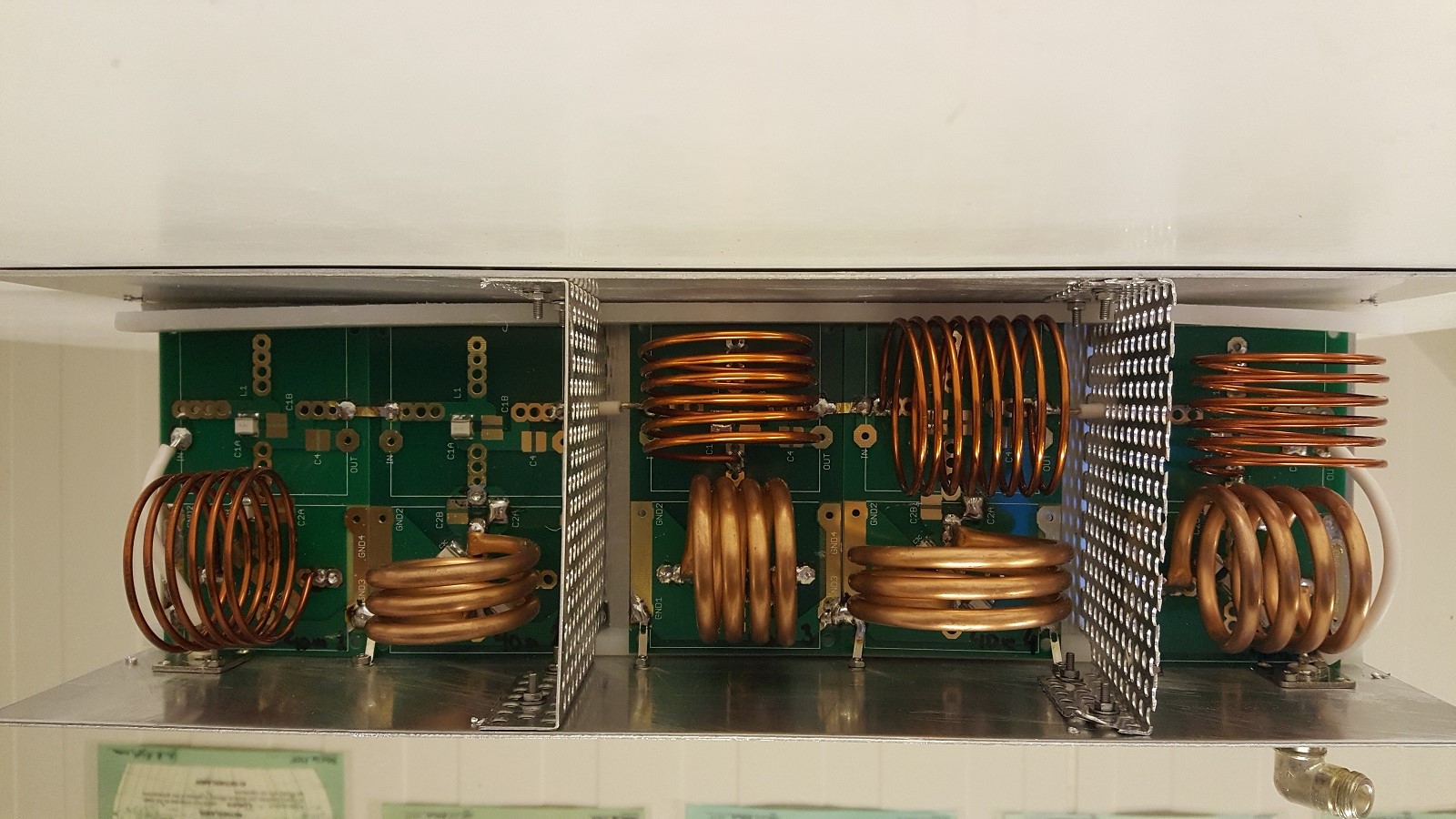

Top view 40 meter filter.

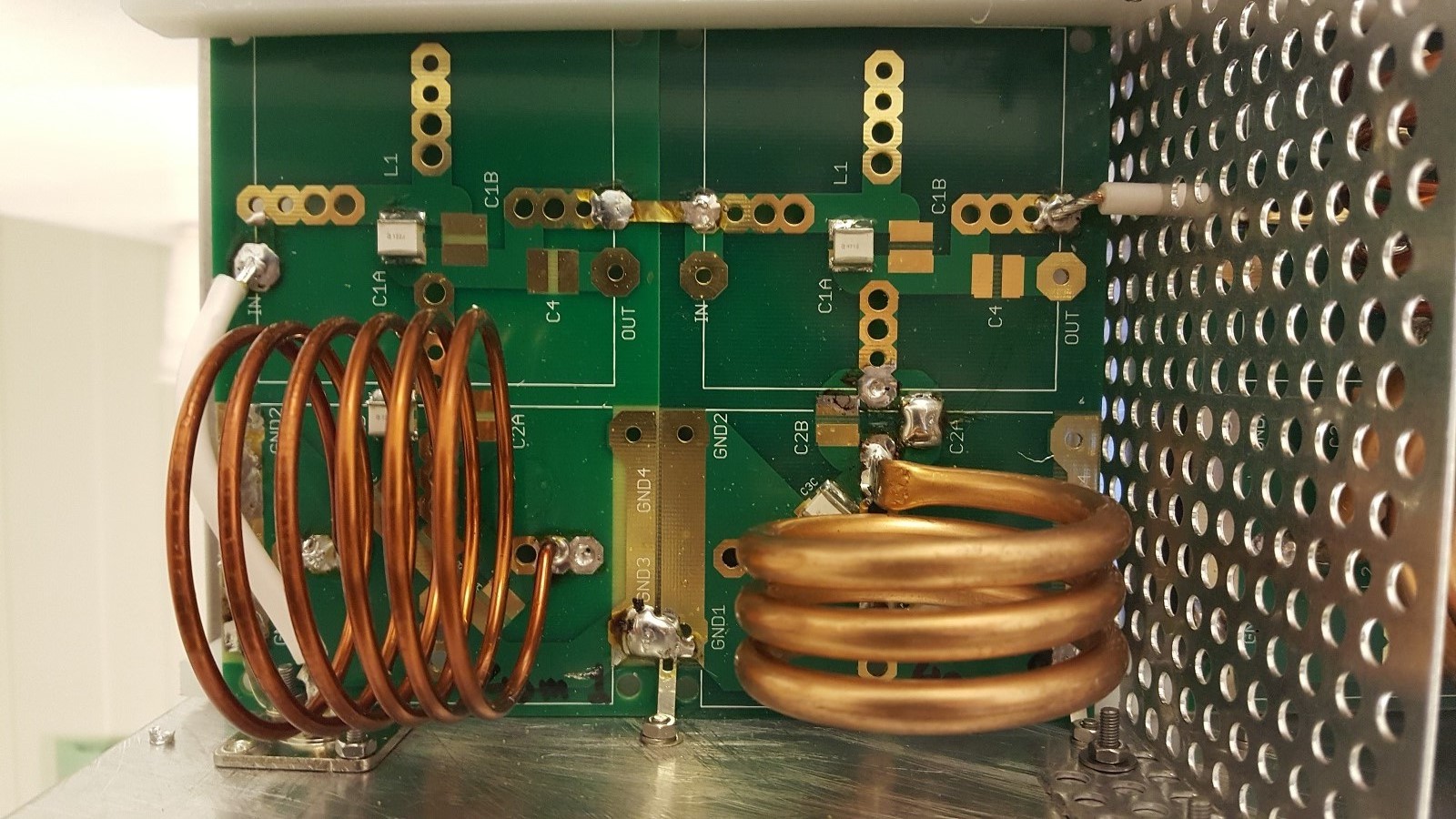

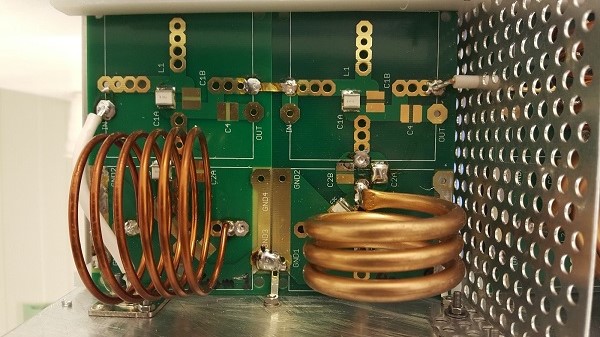

Causer + cheby 1 prints

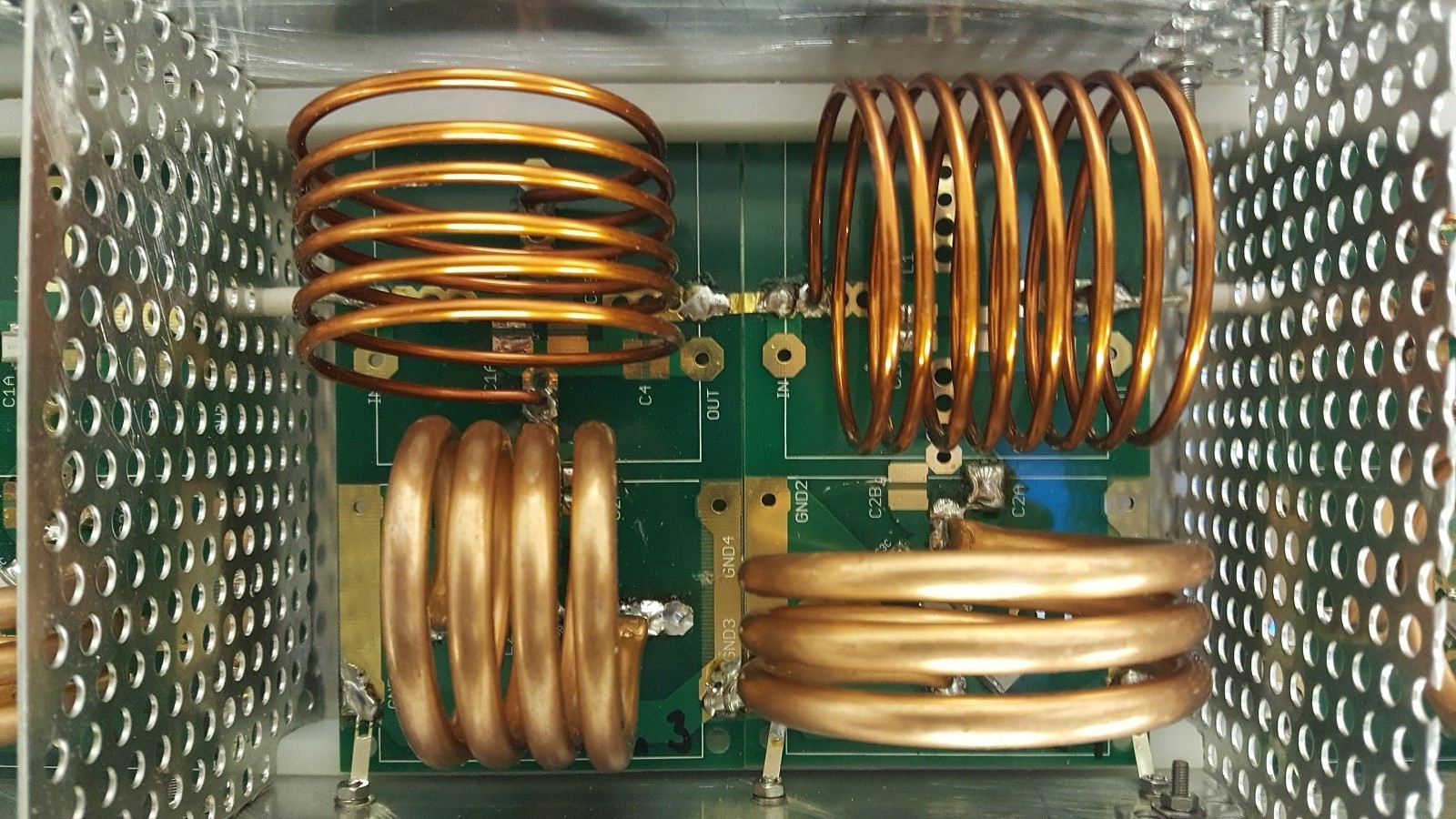

Cheby 2 + cheby 3 prints

Cheby 4 print (90 degrees rotated)


Schematic layout

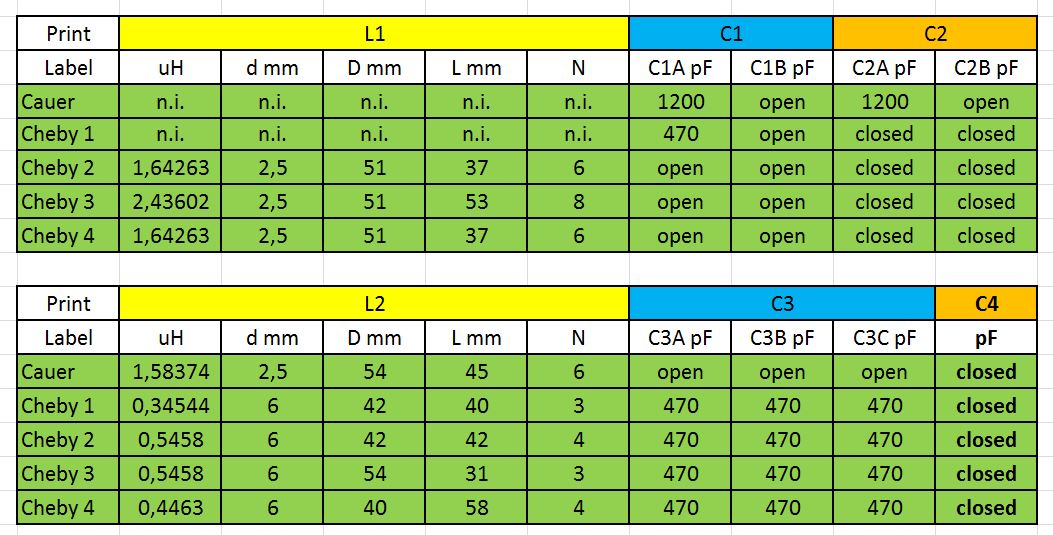

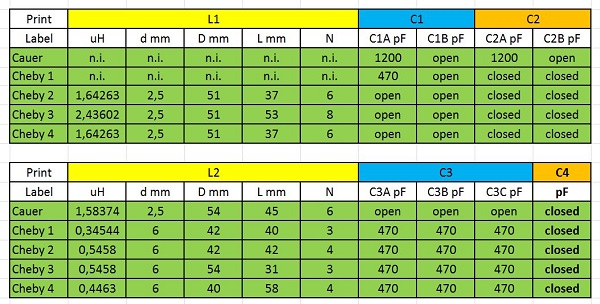

40 meter values
D = diameter body to wind the coil.
